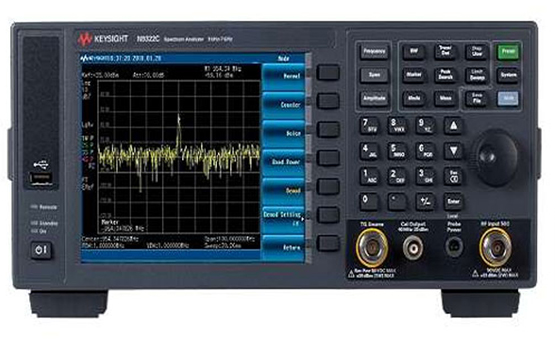

N9322C Basic Spectrum Analyzer (BSA), 9 kHz to 7 GHz

关注次数：420次

商品类型：Keysight

上架时间：2024-01-26 13:33:58

产品描述：Key Features and FunctionsQuickly uncover key insights through fast, value-priced, general-purpose performance up to 7 GHz with -152 dBm DANL and ±0.6 dB overa···

咨询电话：020 2818 6136

产品特点 留言反馈

Key Features and Functions

  • Quickly uncover key insights through fast, value-priced, general-purpose performance up to 7 GHz with -152 dBm DANL and ±0.6 dB overall amplitude accuracy

  • Streamlined for straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys

  • Robust measurement features for easily characterizing your product

  • Automation and communication interface with industry standard SCPI language support and USB and LAN connectivity choices

  • High qulity with low cost

Specifications

For more details: View Data Sheet

Standard Attenuator Range50 dB
Standard Attenuator Step1 dB
DANL @1 GHz-152 dBm
Maximum Analysis Bandwidth1 MHz
Phase Noise @1 GHz (1 MHz offset)-115 dBc/Hz
Phase Noise @1 GHz (30 kHz offset)n/a
Bandwidth Options1 MHz
Performance Level◆◇◇◇◇◇
Applications-Cellularn/a
Applications-Digital Videon/a
Applications-General Purpose

  • AM/FM Tune and Listen

  • Analog Demodulation

  • Cable Fault Location

  • Cable and Antenna Analysis

  • Field Strength Measurement

  • SCPI Code Compatibility

  • Spectral Emissions Mask

  • Spectrogram

  • Stimulus Response

  • ASK/FSK demodulation

  • EMI interference analysis

Applications-Wireless Connectivity

  • n/a

Triggering

  • RF Burst

  • External

  • Video
