产品描述：Three phase models with broad current range up to 100 AFully automated surge and/or burst couplingIEC and ANSI coupling methodsHigh accuracy switching technolog···
咨询电话：020 2818 6136
Three phase models with broad current range up to 100 A
Fully automated surge and/or burst coupling
IEC and ANSI coupling methods
High accuracy switching technology

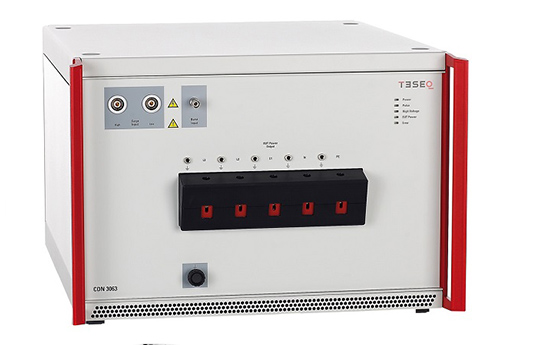

The new, modular CDN 3063 continue Teseq’s philosophy of designing easily upgradeable test instruments that maximize the user’s initial investment. Users can select a CDN from this series that fulfils their basic testing needs with the assurance that they can upgrade it to a model to fit different generator compatibility as their testing requirements change. The CDN 3063 is designed for maximum reliability in a wide range of test setups. Over temperature protection, which allows short term operation at currents exceeding the nominal rating, prevents damage to internal components.
| Parameter | Value |
|---|---|
| Instrument supply | 85 to 265 VAC, 50/60 Hz |
| Standard-conform pulse | Electric fast transient EFT (Burst) Combination wave Ring wave |
| Connections | HV-surge pulse input from generator (Fischer connector) EFT input connector from generator (SHV connector) Connector for EUT supply input (Screw terminals Phoenix) Connector for EUT supply output (Screw terminals) Power inlet for CDN input System cable (25 pin connector) Earth connection Phase rotation indication |
