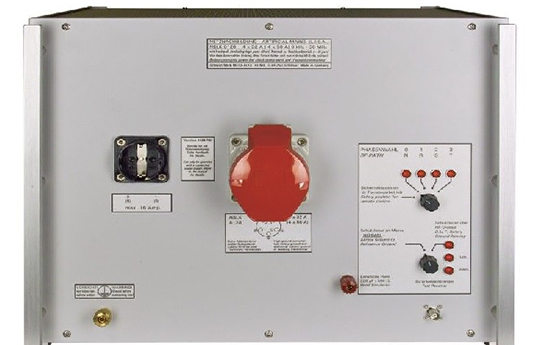

A LISN Line Impedance Stabilization Networks / AMN Artificial Mains Network
supplies the neccessary mains voltage (AC or DC) and current for the Equipment under Test (EuT).
couples interference voltage generated by the EuT and supplies it to the receiver.
provides well defined RF-impedance to the Equipment under Test (EuT)
keeps away unwanted disturbance coming from mains (filter)
protects the mains from unwanted disturbance voltage generated by the EuT
| Type | Topology | Impedance | Current max. | Paths | Options | |
| CISPR 16-1-2 socket | ||||||
| NSLK 8117 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 2 x 10 A | 2 | ||
| NSLK 8127 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 2 x 16 A | 2 | RC, PLC | |
| NSLK 8126 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 2 x 16 A Schuko 4 x 16 A CEKON | 4 | RC | |
| NSLK 8128 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 2 x 16 A Schuko and 4 x 32 A CEKON | 4 | RC | |
| NSLK 8163 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 4 x 64 A CEKON | 4 | RC | |
| CISPR 16-1-2 Wing Terminals | ||||||
| NNLK 8121 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 4 x 50 (100) A | 4 | RC, Hochstrom, 400/700V, Lüfter | |
| NNLK 8122 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 2 x 50 A | 2 | ||
| NNLK 8129 | V-LISN | 50 µH || 50 Ω | 4 x 200 (300) A | 4 | RC, 400/700 V, Lüfter | |
| NNLK 8129-2 HV | V-LISN | 50 µH || 50 Ω | 2 x 200 (300) A | 2 | RC,TC | |
| NNLK 8130 | V-LISN | 50 µH || 50 Ω | 4 x 400 (500) A | 4 | RC | |
| NNLK 8140 | V-LISN | 50 µH || 50 Ω | 1 x 800 (1000) A | single | ||
| Automotive | ||||||
| NNHV 8123 | V-LISN | 5µH || 50 Ω | 70 (100) A | single | ||
| NNHV 8123-200 | V-LISN | 5µH || 50 Ω | 200 A | single | ||
| NNHV 8123-400 | V-LISN | 5µH || 50 Ω | 400 A | single | ||
| NNBM 8124 | V-LISN | (5µH + 1 Ω) || 50 Ω | 70 (100) A | single | N-connector | |
| NNBM 8124-200 | V-LISN | (5µH + 1 Ω) || 50 Ω | 200 A | single | N-connector | |
| NNBM 8124-400 | V-LISN | (5µH + 1 Ω) || 50 Ω | 400 A | single | N-connector | |
| NNBM 8126 A 890 | V-LISN | 5 µH || 50 Ω | 70 (100) A | single | DO-160 | |
| BAN 8508 | 8 A (DC) | single | ||||
| BAN 8530 | 30 A (DC) | single | ||||
| MIL | ||||||
| NNBL 8225 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 20 A | single | ||
| NNBL 8226 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 70 (100) A | single | ||
| NNBL 8226-HV | V-LISN | (50 µH + 5 Ω) || 50 Ω | 70 (100) A | single | ||
| NNBL 8226-2 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 70 (100) A | 2 | ||
| NNBL 8229-HV | V-LISN | (50 µH + 5 Ω) || 50 Ω | 200 A | single | ||
| NNBL 8230 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 300 A | single | ||
| NNBL 8240 | V-LISN | (50 µH + 5 Ω) || 50 Ω | 800 (1000) A | single | ||
| T-ISN | ||||||
| NTFM 8131 | T-ISN | 150 Ω ± 10% | 3 A (AC) | 2 | ||
| NTFM 8158 | T-ISN | 150 Ω ± 20 Ω | 600 mA DC (pair) | 2 | ||
| CAT5 8158 | T-ISN | 150 Ω ± 20 Ω | 600 mA DC (pair) | 2 | ||
| CAT3 8158 | T-ISN | 150 Ω ± 20 Ω | 600 mA DC (pair) | 2 | ||
| ISN S8 | T-ISN | 150 Ω ±20 Ω 150 Ω + 60 Ω /-45 Ω | 1 A (DC) | 8 | ||
| ISN S1 | T-ISN | 150 Ω ±20 Ω 150 Ω + 60 Ω /-45 Ω | 1 A (DC) | single | ||
| Special – LISN | ||||||
| Pilot ISN | 150 Ω ±20 Ω | 1.4 A DC | 2 | |||
| ECSS LISN1 | (1.5 µH) || 50 Ω | 10 A | 2 | |||
| ECSS LISN 2 | (2 µH) || 50 Ω | 10 A | 2 | |||
| ECSS LISN 2 – 75A | (2 µH) || 50 Ω | 75 A | 2 | |||
| ECSS LISN 3 | <span style="box-sizing: border-box; line-height: 18px; | |||||
