Key Features and Functions
Obtain field-ready performance: portable, rugged, fanless design, clear viewing both day and night, maximum 4-hour battery
Get benchtop performance with –152 dBm DANL, ±1.5 dB amplitude accuracy, and < 0.4 s full span sweep time
Reduce test setup time by 95% using the innovative task planner

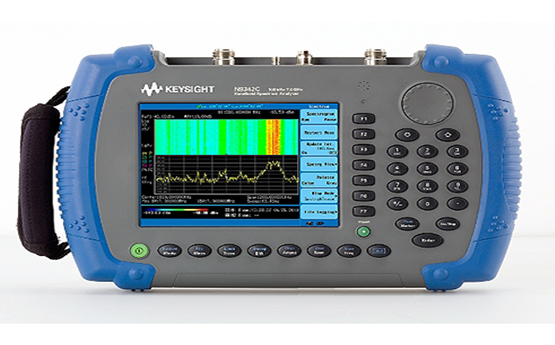

N9342C Handheld Spectrum Analyzer (HSA), 7 GHz
Specifications
| System Features | GPS Receiver – Internal Only |
|---|---|
| Power Measurement Using USB Sensor |
|
| Standard Attenuator Range | 50 dB |
| Standard Attenuator Step | 1 dB |
| DANL @1 GHz | -152 dBm |
| Maximum Analysis Bandwidth | n/a |
| Phase Noise @1 GHz (1 MHz offset) | -119 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset) | n/a |
| TOI @1 GHz (3rd Order Intercept) | +10 dBm |
| Applications Available | Yes |
| Overall Amplitude Accuracy | ±1.5 dB |
| Bandwidth Options | 3 MHz |
| Performance Level | ◆◆◇◇◇◇ |
| Applications-General Purpose |
|
| Additional Features |
|
| Handheld / Modular | Yes |
