200 MHz to 2.5 GHz Frequency Range
Two Year Warranty
Uniform Gain
Low VSWR
Individually Calibrated
Integral Mounting
Frequency Minimum: 200 MHz
Frequency Maximum: 2.5 GHz
Connectors: Type N Female (Standard)
Impedance (Nominal): 50
VSWR: <1.6:1
Pattern Type: Directional
Polarization: Linear

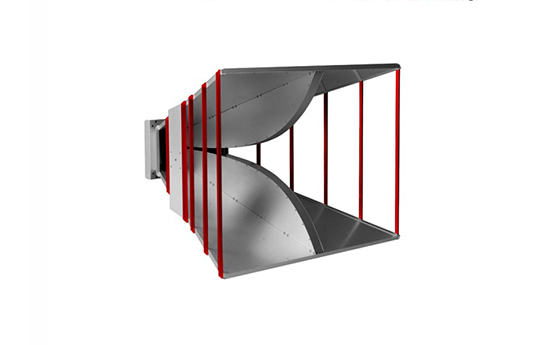

ETS-Lindgren’s 3106B Double-Ridged Guide Antenna has high gain and excellent VSWR characteristics over its entire frequency range.
ETS-Lindgren’s 3106B Double-Ridged Guide Antenna is especially effective for generating high electromagnetic fields with relatively low power input.
The antenna is also useful for receiving low-level signals where high gain characteristics are needed. Although large in size, 93.3 cm (36.7 in), this antenna weighs only 11.8 kg (26 lb). A Type N female connector is used for increased power handling and optional RF connectors are available.
The 3106B Double-Ridged Guide Antenna has uniform gain through its frequency span, providing efficient performance characteristics and directionality. It can handle 1000 W peak and 800 W continuously. Constructed of lightweight corrosion-resistant aluminum, our 3106B Double-Ridged Guide Antenna will provide years of trouble-free indoor and outdoor service.
