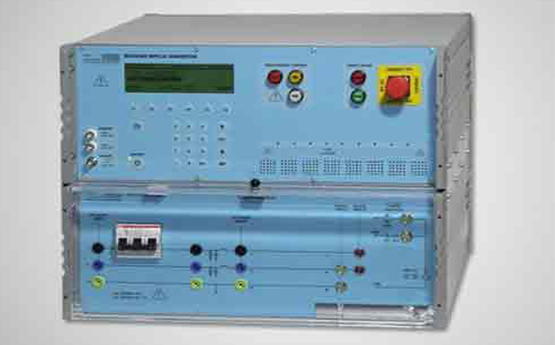

MIG1206-1P SURGE GENERATOR CWG 12KV / 6KA

关注次数:257次

商品类型:EMC Partner

上架时间:2024-01-26 12:42:09

产品描述:FEATURESL to N/PE 280V, L to N max. 480V, and 32A per phase.Solid state impulse switch and solid state polarity change (no mechanical switch, no spark gaps or t···

咨询电话:020 2818 6136

FEATURES

L to N/PE 280V, L to N max. 480V, and 32A per phase.

Solid state impulse switch and solid state polarity change (no mechanical switch, no spark gaps or tubes) – advantages: low jitters, no high frequency switching noise,

Microprocessor menu controlled, printer port and RS232 remote control

Safety in accordance with VDE 0104 (safety circuit, connector for warning lamp)

Windows software for PC control available for windows 95, 98, 2000, NT or XP.


BENEFITS

Integrated peak measurement for voltage and current. Peak display and monitor output for v,i

IMPULSES / CIRCUITS

Combination Wave

SURGE GENERATOR CWG 12KV / 6KA, 2 OHM WITH AUTOMATIC 1-PHASE CDN

Surge Generator CWG 12kV / 6kA, 2 Ohm with automatic single phase coupling network L to N/PE 280V, L to N max. 480V, and 32A per phase. 8UH. According to IEC 61000-4-5.

STANDARDS

IEC 61000-4-5

ANSI C62.41

IEC 61643-1

ITU-T K.21

ITU-T K.44
